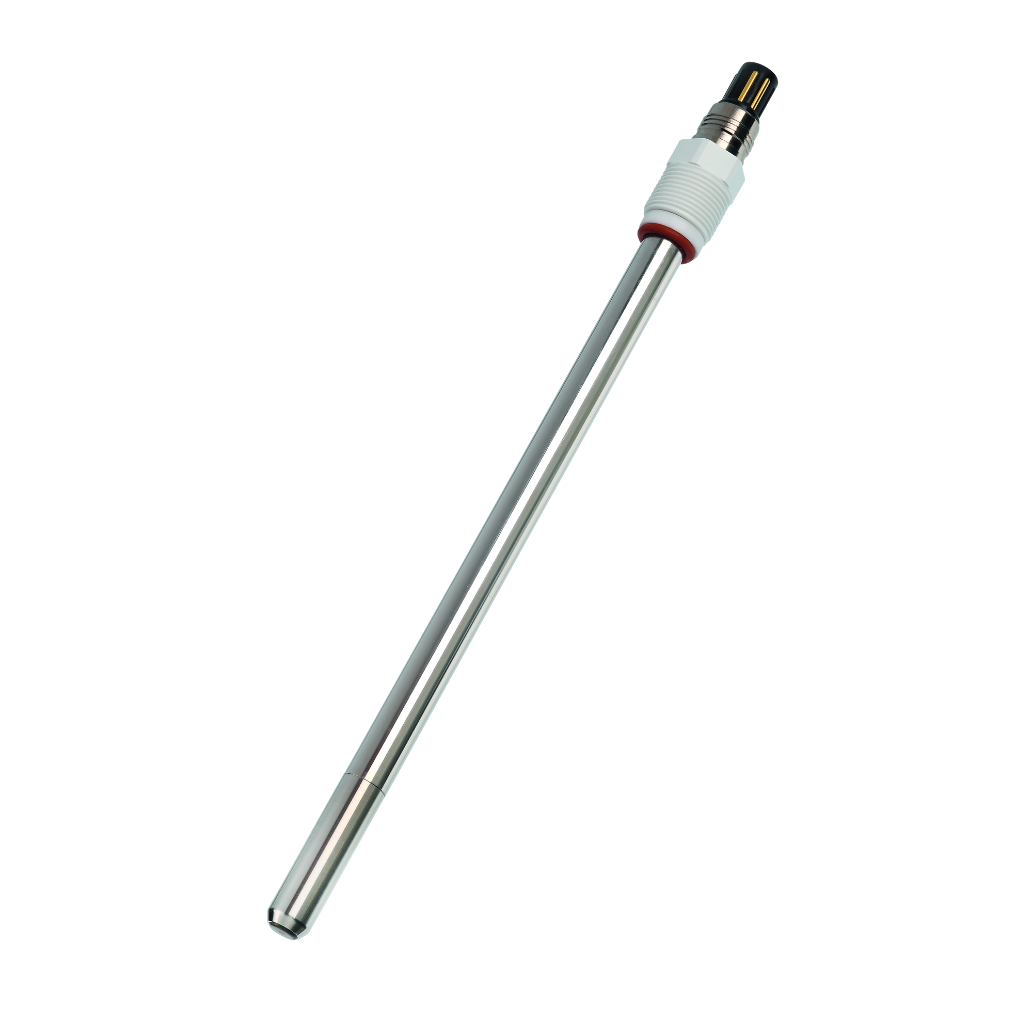

This inline dissolved CO2 probe is able to measure from 10 mbar up to 800 mbar (approximately 0.145 - 11.6 psi) pCO2. The electrode design and the materials used in its production ensure reliable performance over its lifetime. This sensor only requires minimal maintenance for upkeep purposes.
The probe shaft is made of stainless steel (316S) with an exchangeable silicone membrane. The dissolved carbon dioxide probe can be used in hygienic environments; compliance with cGMP and FDA regulations is fulfilled as this sensor is designed for CIP, SIP, and autoclave conditions.
| Industry | Biotech/Pharma |
| Measuring range with high accuracy level | 10 – 800 mbar pCO2 |
| Membrane | Silicone |
| Shaft material | Stainless steel (316S), Ra ≤ 0.4 |
| Temperature sensor | Pt1000 |
| Temperature range (autoclavable) | 0 – 60 °C |
| High temperature | <20 min 121°C |
| Pressure (absolute) during measurement | 0.2 - 2 bar
|
| Shaft diameter (mm)
| 12 |
| Sensor connector | VarioPin, PG 13.5 |
| Output signal | Analog |
| Min. Immersion depth (mm)
| 10 |
| Length (mm) | 120, 220, 320 |
| ATEX | No |
