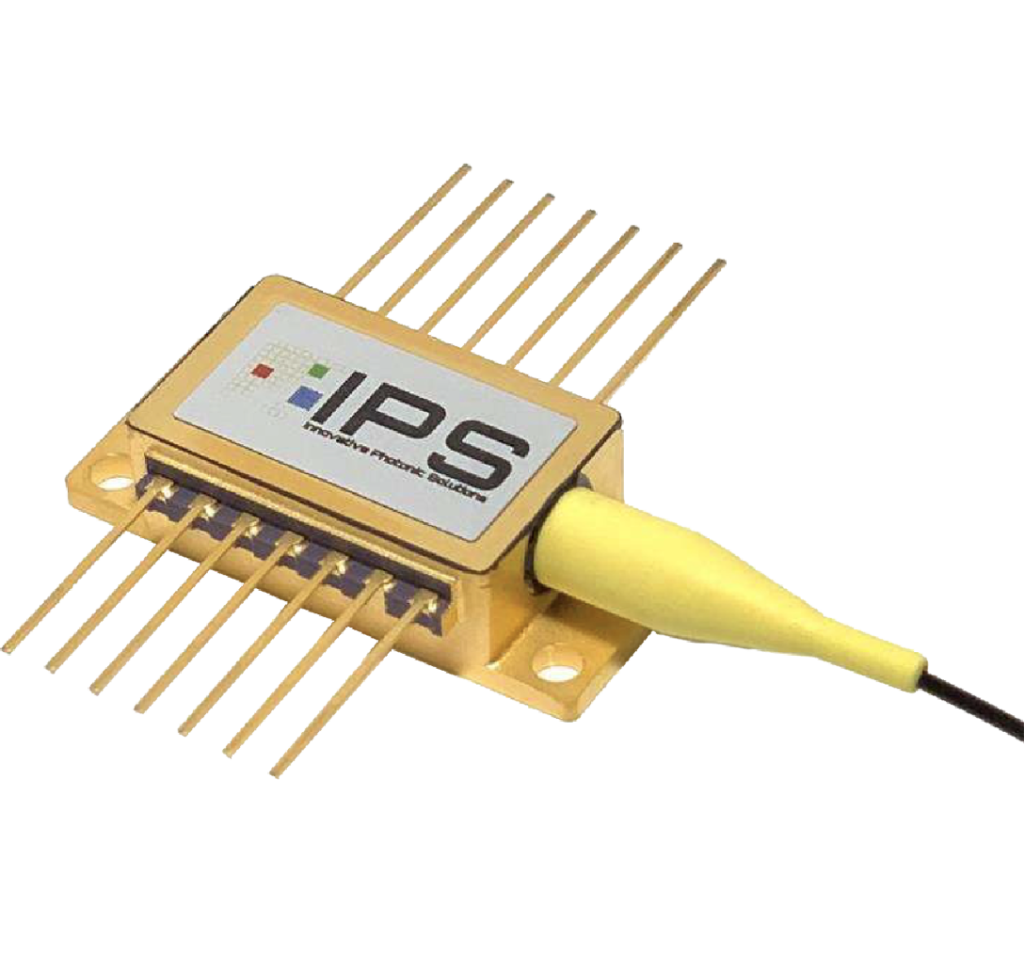

The single-mode wavelength-stabilized butterfly laser diode features a narrow spectral bandwidth, a diffraction-limited output beam, and superior wavelength stability over time, temperature, and vibration. This laser package also includes an integral optical isolator with an internal photodiode, TEC, thermistor, and ESD protection.
This butterfly package can be integrated into the single-mode U-type module with an optical isolator, which includes the laser driver and temperature-controlled electronics in a compact package.
For custom orders, the wavelength can be accurately specified and repeatedly manufactured to within +/-0.1 nm upon request.
|
Wavelength Tolerance |
+/- 0.5 nm |
|
Spectral Linewidth (Dl) |
~ 100 kHz Typical |
|
Wavelength Stability Range |
15 °C - 45 °C |
|
SMSR |
35 - 45 dB |
|
Fiber Options |
Single-Mode Polarization Maintaining, Panda Type |
|
PER |
>17dB, 20dB Typical |
|
Polarization Orientation |
Standard is PM slow. |
|
Output Power Stability |
1% Typical |
This laser package is designed for OEM Integration and is ideal for:
