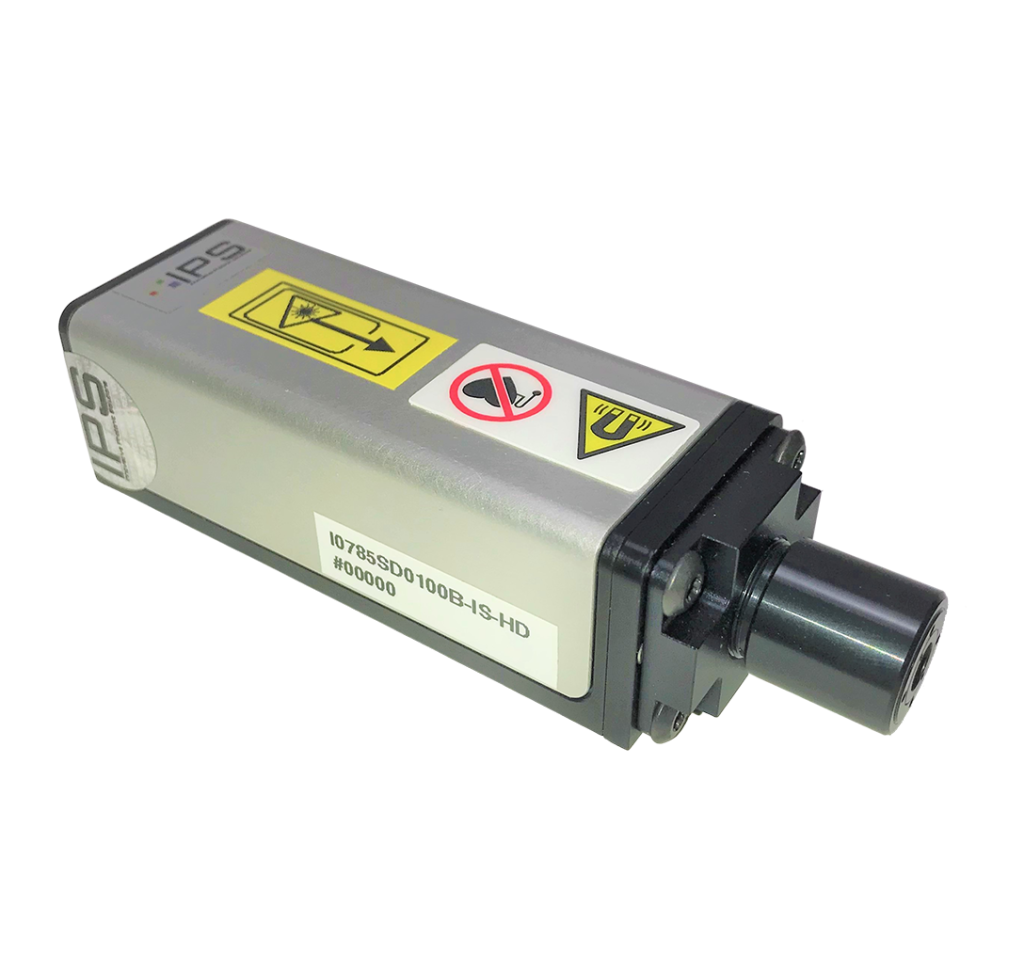

The OEM Single-Mode Digital D-Type Module offers high output power, narrow spectral bandwidth, and a diffraction-limited free space output beam. This module includes an internal thermistor and TEC, laser drive and TEC control electronics, an adjustable beam expander, and an optical isolator in a compact package. UART I/O connectivity and LabView customer GUI allow the user to control the device remotely.
The single-mode spectrum stabilized laser offers a narrow spectral bandwidth and super wavelength stability over time, temperature, and vibration. The laser's stabilized peak wavelength remains "locked" within a wide case temperature range. Devices can be tailored to suit specific needs, providing an extremely high signal-to-noise ratio, which is ideal for Raman spectroscopy.
*For custom orders, wavelengths can be accurately specified and repeatedly manufactured withn +/-0.1 nm upon request.*
|
Wavelength Tolerance |
+/- 0.5 nm |
|
Spectral Linewidth FWHM |
<100MHz |
|
SMSR w/ Integral Laser Line Filter |
70dB |
|
Power Stability |
+/- 0.5% to 1% typical |
|
Wavelength Stability Range |
15°C to 45°C |
|
Power Consumption |
2W typical, 5W max |
|
Linear Tracking Photodiode |
1V Max |
|
Polarization Extinction Ratio (PER) |
>17 dB (20 dB typical) |
|
Polarization Orientation |
Perpendicular to the plane of base plate mounting plane. |
|
Spatial Profile |
TEM00 |
|
Beam Quality (M², 1/e²) |
<1.2 |
|
Beam Ellipticity |
<1:5:1 |
|
Beam Diameter |
4.0mm (+/-0.4mm) w/ beam expander |
|
~0.7mm w/o beam expander |
Beam Divergence |
|
<1 mrad w/beam expander |
~2 mrad w/o beam expander |
|
Cold Start to <1 Wavenumber |
10 Seconds |
|
Warm Start to <1 Wavenumber |
1 Second |
|
Warm Start to <0.1 Wavenumber |
3 Seconds |
This laser package is designed for OEM Integration and is ideal for:
