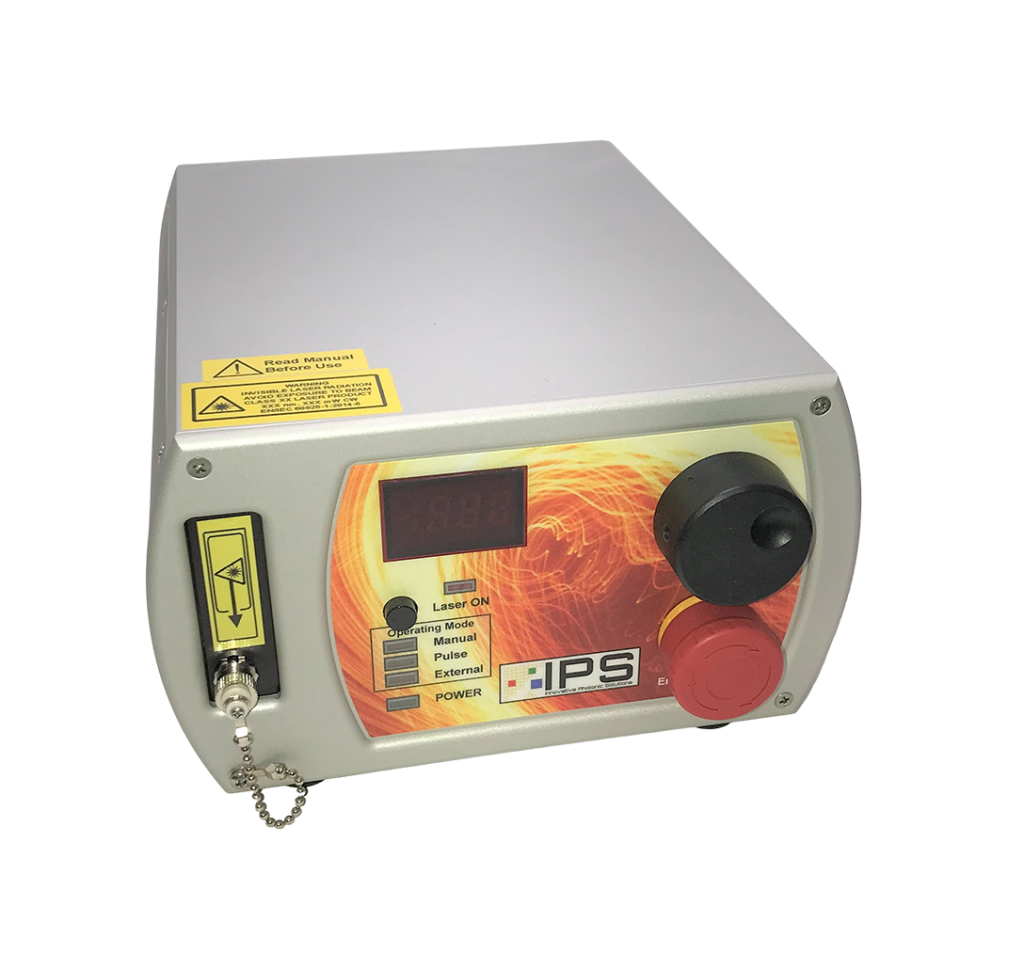

The M-Type integrates a multi-mode U-Type module into a UL/CE and IEC-certified turn-key system, which includes a laser driver, TEC control electronics, and power supply.
Comes standard with a laser enable switch, safety key lockout, remote interlock, and emergency shut-off button, but also features a LED readout and output power control dial.
USB connection and LabView customer GUI allow the user to control the device remotely.
|
Wavelength Tolerance |
+/- 0.5 nm |
|
Narrowed Linewidth |
<0.1 nm (0.08 nm typical) |
|
SMSR |
35 – 45 dB |
|
Wavelength Stability Range |
15 °C – 45 oC |
|
Output Power Stability |
<1% at constant Tcase (sample rate of 1 per 1 second.) |
|
Modulation Rate |
CW to 10KHz at 50% duty cycle or CW to 1kHz at 10% – 100% duty cycle. |
|
Warm-Up Time |
10 seconds from cold start 1.5 seconds from warm start |
This laser package is designed for OEM Integration and is ideal for:
