The Low-Frequency DIY system (DIY-LF) is unique because it measures the Raman spectrum on the anti-Stokes region, across the laser excitation line, and into the Stokes region. Powerful filters remove scattering within about 5 cm-1 of the laser line to give you access to structural Raman data that is unavailable through other Raman techniques.
| Supported Wavelengths | 532 nm, 785 nm, 1064 nm |
| Laser Mode | IPS multi-mode lasers recommended. Single mode lasers supported |
| Laser Power | Power varies by laser
Typically, <300 mW in multi-mode 50 mW in single mode |
| Physical Dimensions | 234 mm x 103 mm x 59 mm |

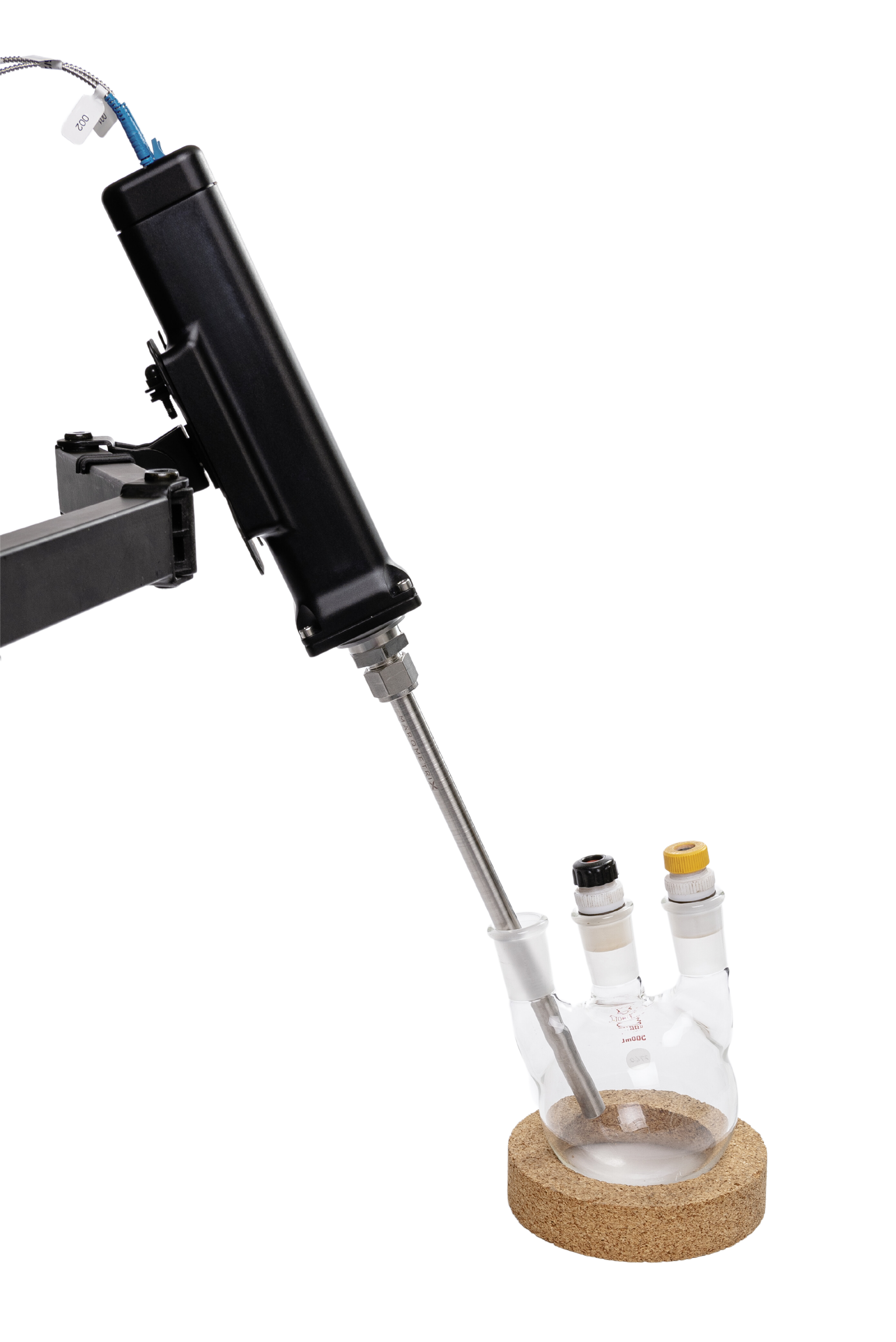

| Sampling Accessories | Probe Tip
Vial Holder Non-Contact Optics Large Space Adapter Microscope Adapter |
| Laser | IPS supplies a selection of high-performance laser configurations to support the Low Frequency DIY.
Customization is availabe. |
| Detector | B&W Tek supplies a range of high-performance Raman spectrometers with BWSpec software for use in the DIY configuration.
Customization is available. |
