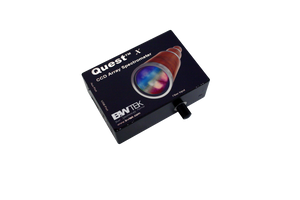

Discover spectroscopy with the Quest spectrometer line, a compact, temperature-compensated linear CCD spectrometer with SMA 905 fiber coupler for light input.

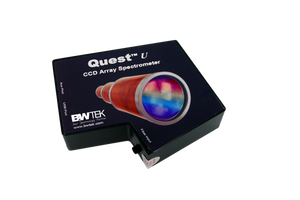

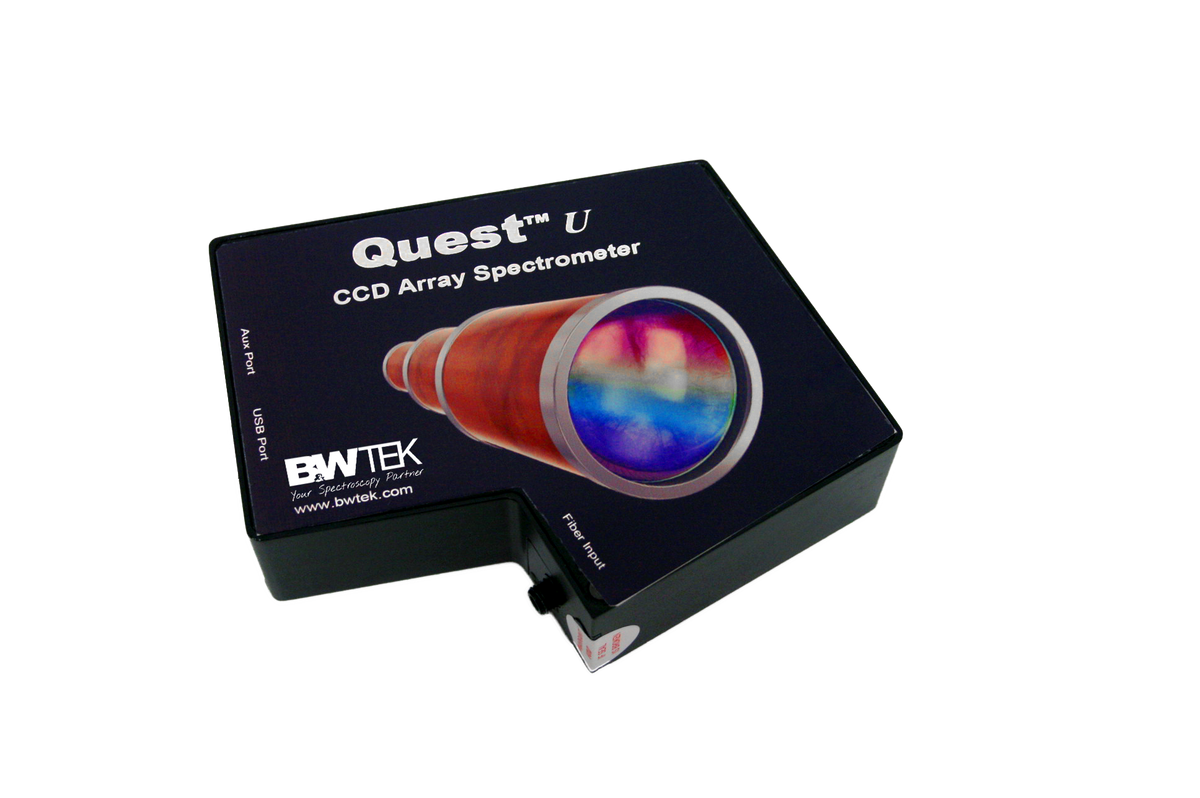

Available in various footprints, this is our Quest designed with a UV-enhanced optical bench layout for low stray light applications in the UV/VIS region.
Equipped with a 16-bit digitizer and USB 2.0/1.1 interface, an included USB cable makes for easy set-up and analysis. Choose from many setup options with our spectroscopy accessories and fiber cables to create your own spectroscopy system today!
| Power Input | USB @ < 0.35 Amps |
| Detector Type | Response Enhanced Linear CCD Array |
| Detector Pixel Format | 2048 x 1 Elements @ 14μm x 200μm Per Element |
| Spectrograph f/# | 3.6 |
| Spectrograph Optical Layout | Czerny-Turner |
| Dynamic Range | 1300:1 Single Acquisition |
| Digitizer Resolution | 16-bit or 65,535:1 |
| Readout Speed | >2.0 MHz |
| Data Transfer Speed | Up to 480 Spectra Per Second Via USB 2.0 |
| Integration Time | 1 - 65,535ms |
| Thermal Drift | ~15 Counts/°C (~29 Counts/°C Max) |
| Aux Port | External Trigger, Digital IOs |
| Operating Temperature | 5°C - 35°C |
| Operational Relative Humidity | 85% Noncondensing |
| Weight | ~ 0.8 lbs (0.37 kg) |
| Dimensions | 4.9in x 3.6in x 1.4in (124mm x 91mm x 35mm) |
| Computer Interface | USB 2.0 / 1.1 and Enhanced RS232 |
| Operating Systems | Windows: XP, 7, 8, 10 (32-bit & 64-bit) |
